Ice Cream Paper Cone Sleeve Forming Machine

Introduction

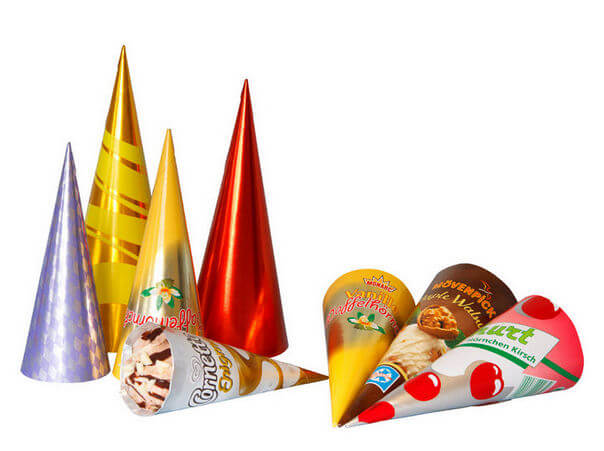

automatic paper cone sleeve machine CPC-220 is made for ice cream and other similar paper cone sleeve.this machine can shape angles from 17-23,(through the way to change the mold），high speed from 190-230pcs\min,can use different paper material like art paper,aluminized paper,offset paper etc.major parts of this machine used famous international brand like Schneider.Panasonic,Robatech etc.

Feature:

The GLUE BOX is Swiss imports,which make the spray more uniform and better bonding effect.
Operate panel use touch screen, whole machine is controlled by PLC and full-automatic failure warning;
Encoder setting machine, control, regulation, maintenance more convenient
The external electric box is cancelled, which make the packing volume of the machine is reduced, and the transportation cost is reduced

Application:

Machine Detail:

Specifications

Technical Parameter:

Model	CPC-220

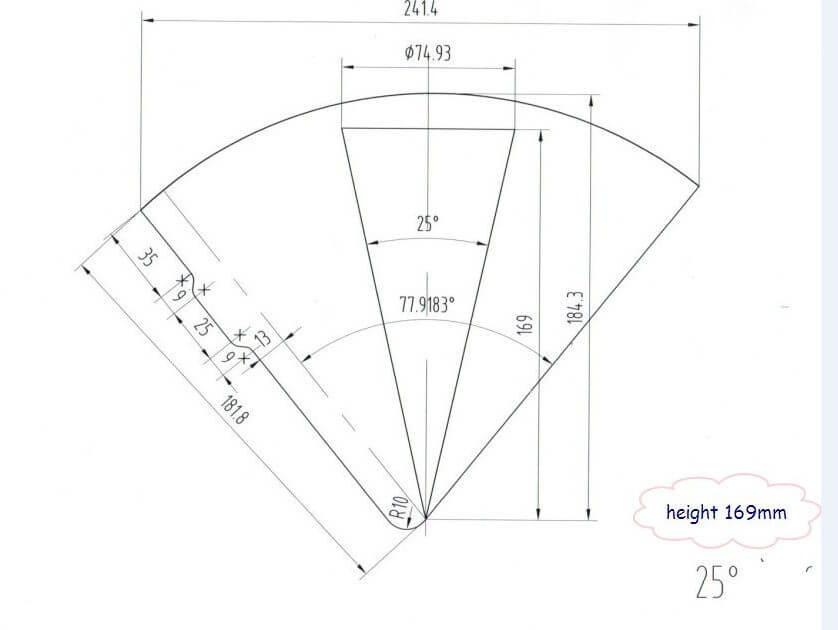

Paper cone Size	degree17°-23° , Plagioclase110-230mm
Raw Material	110-170g/m2 art paper/aluminized paper/offset paper/wax paper ect.
Speed	190-220pcs/min
Voltage supply	380v 50hz 3-phase
Working Air Source	Air pressure 0.4-0.8Mpa
General power	9kw
Net weight	1000kgs
Packing Size	185012501800
Sealing Glue	Hot melt adhesive

1 Q:What is the machine warranty?

A: One year. We will provide maintenance support for any issue with the equipment. If the equipment are still under warranty, we will replace and repair the faulty parts free of charge and buyer will only need to pay for the shipping or air charges. In general we are able to ship the faulty party that are in stock within 1 day.

2 Q:What is the delivery time?

A:15-30days after get the payment.

3 Q:Can your company handle shipping for customers?

A:Yes, just give us destination sea port or container yard

4 Q:Do you inspect machines before packing?

A:Of course we do.we have QC department to debug the machine before packing

5 Q:What’s the payment term?

A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.

6 Q:Who is going to install the equipment?

A:Generally, as a buyer you will visit our factory for equipment training and installation but if needed we could also visit buyer’s factory. Buyer only need to pay for return air ticket and lodging expenses.

7 Q: Do you accept factory visiting?

A: We are highly greeting for your visiting.
