Paper Cup Forming Machine For Double-sided PE Coated ZB-S12

Introduction

Feature:

ZB-S paper cup forming machine is an automatic machine with multi-working station.
This model is suitable for making two side PE coated paper with full printing design cups.
This cup can be for both hot and cold drinking,such as soft drinking,ice-cream and coffee etc.
It produces two-side film- coated paper cup through the procedure of automatic paper feeding,ultrasonic welding,top mouth lubrication,bottom punching,two times of bottom heating,bottom knurling,curling and cup stack .
The sealing system is ultrasonic sealer

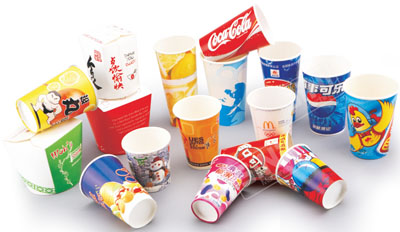

Samples:

Specifications

Technical Parameter:

Model	ZB-SO4	ZB-S12	ZB-S16	ZB-22
Cup size	2,4,4.5,6.5 OZ (For ice-cream)	6,8,12 OZ	12,14,16 OZ	16,22 OZ
Raw material	Two side PE coated paper and one side PE coated paper
Top mouth diameter	50-80	50-95	50-95	50-95
Bottom diameter	35-70	35-70	35-70	35-70
Height	30-60	50-120	100-150	100-175
Bottom depth	≤10	≤10	≤10	≤12
Angle	4-6°	2-8°	2-8°	2-8°
Capacity	40-50 pcs/min	40-50 pcs/min	35-45 pcs/min	30-40 pcs/min
Power source	380V 50Hz (it can be changed if customer require)
Total power	5KW	6.5KW	8KW	8KW
Weight	1600Kg	1600Kg	1700Kg	1900Kg
Package size?	280013501760?	280013501800	300014501900	330014502000
(LWH mm)	7306001100?	8007501300	8007501350	8007501350
Air source		0.2 m³/min;0.6 Mpa customer-owned

FAQ

1 Q:What is the machine warranty?

A: One year. We will provide maintenance support for any issue with the equipment. If the equipment are still under warranty, we will replace and repair the faulty parts free of charge and buyer will only need to pay for the shipping or air charges. In general we are able to ship the faulty party that are in stock within 1 day.

2 Q:What is the delivery time?

A:15-30days after get the payment.

3 Q:Can your company handle shipping for customers?

A:Yes, just give us destination sea port or container yard

4 Q:Do you inspect machines before packing?

A:Of course we do.we have QC department to debug the machine before packing

5 Q:What’s the payment term?

A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.

6 Q:Who is going to install the equipment?

A:Generally, as a buyer you will visit our factory for equipment training and installation but if needed we could also visit buyer’s factory. Buyer only need to pay for return air ticket and lodging expenses.

7 Q: Do you accept factory visiting?

A: We are highly greeting for your visiting.

Catalogue

Download here：

Why Choose us

Professional R&D Team: Over 8 years experience with a top engineer team supported
Outstanding Quality: Only choose famous brand main electric components for production
ISO CE Approved: Professional certification bodies certify that the machines are of high quality
