Paper Cup Forming Machine For Single PE Coated ZB-A12

Introduction

Feature:

This machine is a multistation slow speed automatic machine producing single-sided PE coated drink cups, ice cream cups or conical vessels of other food
Precise box type indexing cam structure, the parts all adopt standard production, have high generality and good exchange performance, and facilitate equipment maintenance.
The paper holder is provided with paper feeding detection function, so that it will alarm automatically when the paper is less than a certain amount. (optional according to the demand of the customer)
The heat seal barrel forming part is provided with non-cup-barrel detection, alarming and sopping functions, which enhance the automation degree of the machine. (optional according to the demand of the customer)

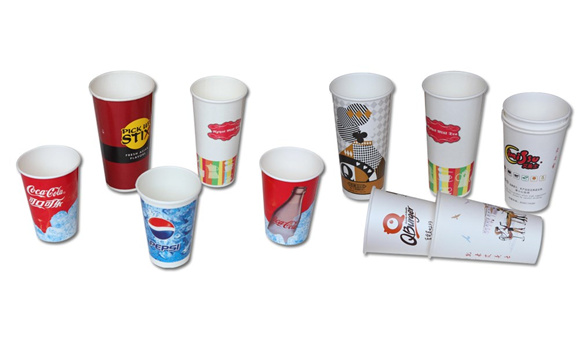

Application:

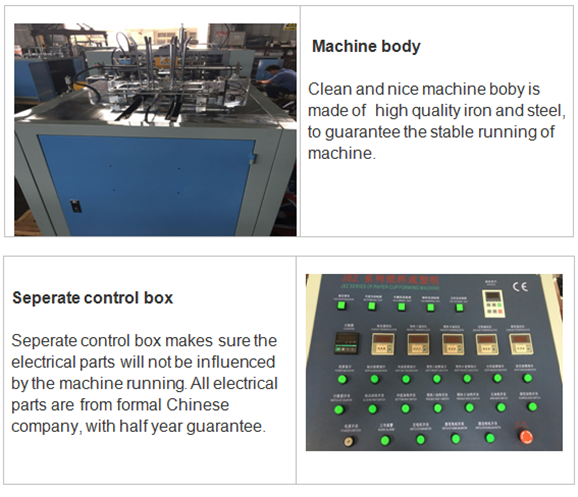

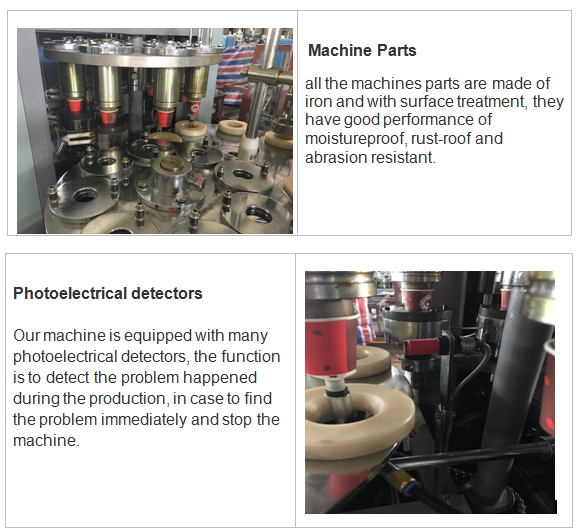

Machine Detail:

Specifications

Technical Parameter:

Model	ZB-A04	ZB-A12	ZB-A16	ZB-A22
Cup size	2,4,4.5,6.5 OZ (For ice-cream)	6,8,9,12 OZ	8,9,12,16 OZ	16,22 OZ
Raw material	One side PE coated paper
Top mouth diameter	50-80	50-95	50-95	50-95
Bottom diameter	35-70	35-70	35-70	35-70
Height	30-60	50-120	80-150	100-175
Bottom depth	≤10	≤10	≤10	≤12
Angle	4-6°	2-8°	2-8°	2-8°
Capacity	40-50 pcs/min	40-50 pcs/min	35-45 pcs/min	30-40 pcs/min
Power source	380V 50Hz (it can be changed if customer require)
Total power	5KW	5KW	6KW	6KW
Weight	1600Kg	1600Kg	1600Kg	1900Kg
Package size	280013501760	280013501760	300013501900	330014502000
(LWH mm)	7306001100	7306001100	7306001100	7306001100

1 Q:What is the machine warranty?

A: One year. We will provide maintenance support for any issue with the equipment. If the equipment are still under warranty, we will replace and repair the faulty parts free of charge and buyer will only need to pay for the shipping or air charges. In general we are able to ship the faulty party that are in stock within 1 day.

2 Q:What is the delivery time?

A:15-30days after get the payment.

3 Q:Can your company handle shipping for customers?

A:Yes, just give us destination sea port or container yard

4 Q:Do you inspect machines before packing?

A:Of course we do.we have QC department to debug the machine before packing

5 Q:What’s the payment term?

A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.

6 Q:Who is going to install the equipment?

A:Generally, as a buyer you will visit our factory for equipment training and installation but if needed we could also visit buyer’s factory. Buyer only need to pay for return air ticket and lodging expenses.

7 Q: Do you accept factory visiting?

A: We are highly greeting for your visiting.
