Project Description

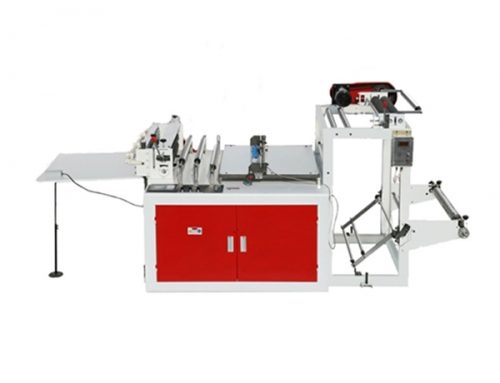

Table Sheet Cutting Machine QD Series
Tabel sheet cutting machine QD series is suitable for all kinds of roll materials into sheet or pieces, such as pvc , copper foil, cloth, Nonwoven fabric, Barley paper, Battery separator, aluminum foil, Nonwoven fabric, Fast bar paper, PE membrane, Nickel foil, Conductive , Septum, Off type paper, Plastic sheet, Insulating paper, Reflection film, Mica film , paper, cardboard, self-adhesive, insulating paper, various films and plastics, as well as metallized tapes and foils, rubber tapes, plastic tapes and hoses (fiberglass, silicone, polyethylene and others), woven and non-woven tapes, foam materials, plastic and rubber tubes, heat shrink tubes, belts etc.
Feature:
-
Simple cutter control: the length and number of cut sheets (pieces or segments) are set on the cutter control panel with LCD screen
-
Smooth adjustment of cutting speed and length without stopping the cutting knife
-
Automatic cutting delay when cutting the specified group of sheets (blanks) and continuing to cut
-
Automatic stop of the sheet cutter at the end of the material
-
Leaf cutter can cut material in the form of ribbons, as well as in the form of soft tubes, threadlike materials, etc.
-
High-speed stepper motor precisely controls the specified cut length and cutting speed
-
LCD display provides easy control of the knife cutter

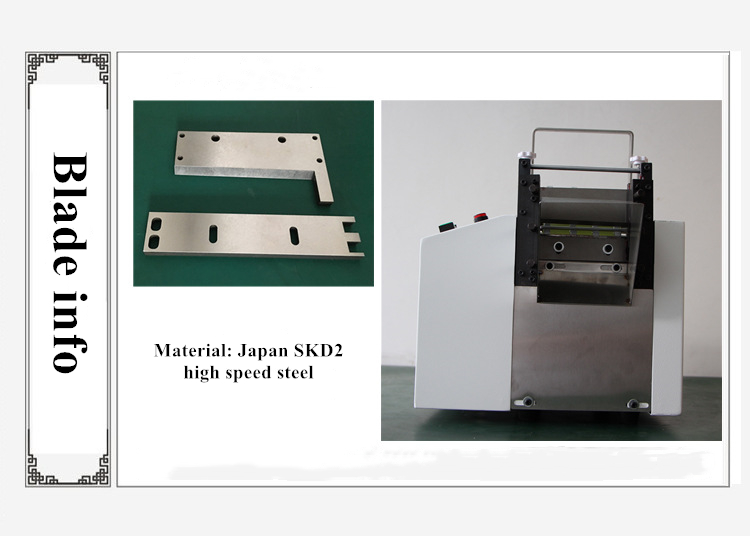

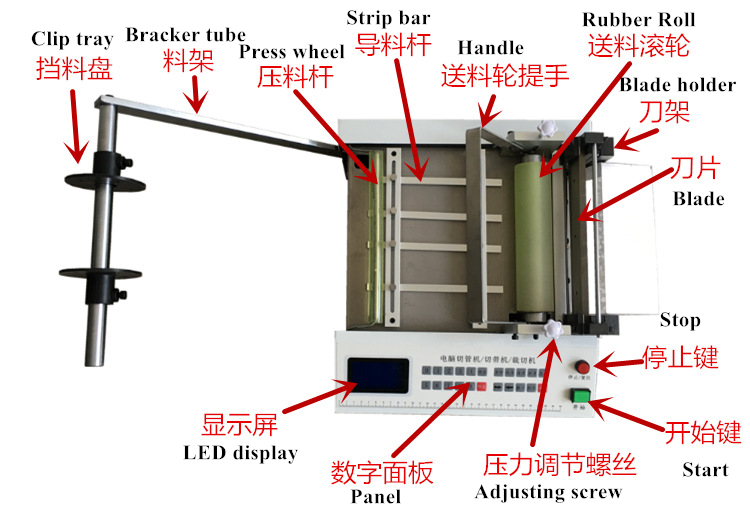

Detail photos:
Application:
Technical Parameter:
| Model | QD-100(100-1200) |
| Max width | 100-1200mm |
| Cut length | 0.1 mm - 100 m |
| Speed | 110pcs/minute(100mm length) |
| Cut accuracy | 0.1 mm |
| Voltage | AC 220V/110V 50Hz |
| Power | 500 W |
| Dimensions | 360*420*350mm |
| Weight | 33-220 kg |
1 Q:What is the machine warranty?
A: One year. We will provide maintenance support for any issue with the equipment. If the equipment are still under warranty, we will replace and repair the faulty parts free of charge and buyer will only need to pay for the shipping or air charges. In general we are able to ship the faulty party that are in stock within 1 day.
2 Q:What is the delivery time?
A:15-30days after get the payment.
3 Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
4 Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
5 Q:What’s the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
6 Q:Who is going to install the equipment?
A:Generally, as a buyer you will visit our factory for equipment training and installation but if needed we could also visit buyer’s factory. Buyer only need to pay for return air ticket and lodging expenses.
7 Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
