Project Description

Middle Speed Automatic Paper Cup Making Machine ZB-22D

ZB-22D middle speed pe coated paper ultrasonic automatic paper cup making machine

Feature:

  • This machine is applied to 22D pe coated paper paper cup
  • Adopt the latest technology to achieve the product energy-efficient,economy and durability
  • The shape is exquisite and can exchange the mould,will strive continuously to pursuit of excellence in science and technology innovation.

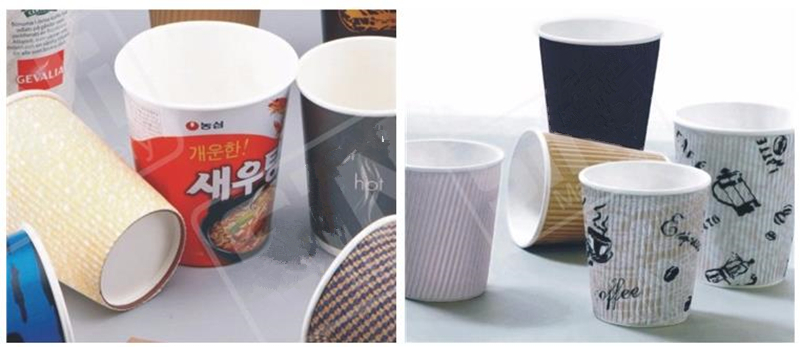

Samples:

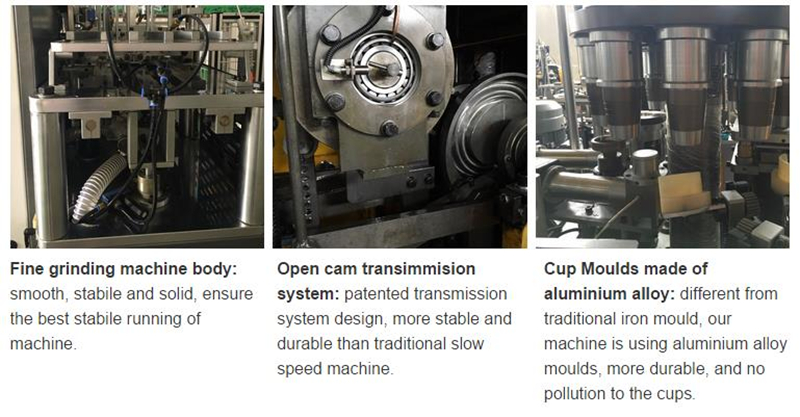

Machine Detail:

Technical Parameter:

ModelZB-22D
Cup size6-22 oz
Raw material160-350g/㎡
Two side pe coated paper and one side pe coated paper
Top diameterΦ60-Φ90 mm
Bottom diameterΦ40-Φ70 mm
Height60-180 mm
Bottomdepth 5-10 mm
Capacity60-90 pcs/min
Main motor power1.5 kw
Energy consumption6-6.5 kw
Total power11.5 kw
Air source0.4m³/min;0.5-0.8Mpa
Weight2200Kg
Package size1750*1350*1850 mm

1 Q:What is the machine warranty?

A: One year. We will provide maintenance support for any issue with the equipment. If the equipment are still under warranty, we will replace and repair the faulty parts free of charge and buyer will only need to pay for the shipping or air charges. In general we are able to ship the faulty party that are in stock within 1 day.

2 Q:What is the delivery time?

A:15-30days after get the payment.

3 Q:Can your company handle shipping for customers?

A:Yes, just give us destination sea port or container yard

4 Q:Do you inspect machines before packing?

A:Of course we do.we have QC department to debug the machine before packing

5 Q:What’s the payment term?

A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.

6 Q:Who is going to install the equipment?

A:Generally, as a buyer you will visit our factory for equipment training and installation but if needed we could also visit buyer’s factory. Buyer only need to pay for return air ticket and lodging expenses.

7 Q: Do you accept factory visiting?

A: We are highly greeting for your visiting.
